Engaging an Architect and the design process

Every client is unique and has different needs and aspirations. Every site is different and the budget can vary. Therefore, every design we undertake is bespoke to you. Therefore, the associated services provided by us is tailored accordingly so the cost and scope of services will be personalised to you, the sites’, and projects’ requirements. This information is intended to give an overview of a typical project utilising a simple traditional procurement route and is aimed at someone looking to engage an architect for the first time.

RIBA Stage 1-Consultation and Brief

The first stage is for us to carry out an onsite consultation with you at your property at a time to be agreed. This is to establish your design brief and discuss how the design process works. We will discuss your proposed project in detail, establish what you need and want from the project and the feasibility of achieving this and how this can be realised by bringing a creative eye to the process. We will discuss cost, time scale, as well as talk through in detail the various statutory obligations that are required, for example obtaining planning consent, demonstrating compliance with Building Regulations and with the Construction (Design & Management) Regulations 2015 (CDM). We will also set out what the obligations and responsibilities are from your perspective, our role and the role of other consultants who may be required on the project.

We approach all our projects with sound, honest advice based on our experience. Our aim is to provide you with a clear view of the proposed project and help you understand the costs and the challenges you may face with your project. We aim to address any challenges that may arise creatively and professionally with a pragmatic approach to our working process. All work is undertaken by, or under the direct supervision of an RIBA Chartered Architect who will guide you through the whole design and build process – from the initial design stage, to seeing the project through the planning and construction processes, on site assistance to the completion of your project. We conform to the RIBA and ARB Code of Conduct, which ensures our clients get the highest standard of professional conduct and service throughout.

Following the meeting, we will provide you with a formal estimate of our ongoing fees as fixed lump sum figures for the various stages in line with the RIBA stage of work that we have agreed in the initial meeting.

RIBA Stages 3-Design and Consent

Once our appointment is agreed and you are content with our service proposal, we will formally get your project underway. The first stage usually consists of a building measurement survey and gathering information about the site. Some projects will require an external land topographic survey. We will advise you if this is required at the beginning. A separate surveying company will carry out the land survey. Your project may include the appointment of other consultants to assist in the process at various stages, such as a planning consultant, Ecologist, Arboriculturalist, highways engineer, drainage consultant and structural engineers. Again, we will endeavour to advise you at the outset who will be required so you are aware to factor this in to the project budget. We will continue to crystalize the project brief with you and start developing the concept designs based on our initial discussions, working alongside you until we have a final design agreed. The final design drawings will form the key component of any planning submission, along with other documents and reports that may be required.

RIBA Stage 4-Building Regulation/Production information & Tender

Once planning permission is granted, the next stage is to develop the building regulations and technical design drawings for your project. This is called production information. The planning drawings are a set of simplified focused purely on the design and materials. Building regs drawings are much more detailed than planning drawings. They incorporate  the structural information, thermal insulation, drainage etc and proof of full compliance with the building regulations. They also include enough information for a contractor to accurately price as well as detailed set of construction specification notes and full product specific information to allow the contractor to price and ultimately build from. Building regulations drawings can also include larger scaled detailed drawings and construction details if warranted. This information is submitted to the local authority building control department (or private company). Architectural drawings, building regulations drawings and the structural drawings from the engineer are all needed for the application as well as a SAP report if you have lots of glass in your proposals.  New build projects will also require an overheating assessment under the new Part O of the building regulations.

See below what building regulations drawings can include:

✓ Details proposed works

✓ Fully dimensioned drawings

 ✓ Specification notes relating to construction methods and element build ups

 ✓ Proving compliance with relevant parts of the Building Regs

 ✓ Structural Information incorporated within the design by the structural engineers

 ✓ Drawing pack includes more drawings containing more information, demolition layouts, structural layouts, sections, drainage and sometimes 1:10 details where control of detail on site is required

 ✓ Thermal compliance included within the design via the SAP report

 ✓ Insulation thicknesses in roof, walls and floors confirmed

✓ Fully compliant construction details

 ✓ Exact details and specifications

A basic set of Technical Designs will form the main part of a Building Regulations Plan Check submission. Although the technical design drawings can be used for construction on simple projects like a simple house extension, projects that are more complicated often require additional detail, often in the form of additional detailed larger scale working details, schedule of works, finishes schedules, door and window and joinery schedules. The more information that can be provided to a contractor, the more accurate their tender price will be as there will be better clarity. We can advise and help you what level of detail to suggest and find a suitable contractor for your project and obtain prices through a competitive tender process. The tendering contractors will base their prices on the tender package provided including the technical design and other information gathered throughout the project. On receiving these prices, we will then evaluate the tenders and assist you in selecting the contractor to use for your project.

RIBA Stage 4-Construction

Assuming a contractor is selected and a final contract price and scope of works is agreed, we can assist in drawing up the appropriate form of building contract between yourself and the successful contractor. This could be a simple Building Contract, such as the RIBA Domestic Building Contract or JCT Minor Works – which can be used on small domestic projects such as house extension and refurbishments and change of use projects. A more complex, larger building project such as a new build house will require a more detailed form of Building contract, such as the JCT Intermediate Building Contract or the JCT Standard Building Contract. It is vital that you enter in to some sort of building contract whether or not we are involved in the on-site affairs. We would strongly advise that a written agreement is in place between yourself and the contractor for all construction work, for example the JCT Homeowner (HO/B) contract or the RIBA Domestic Construction Contract, with the self-administration clause selected.

If you do choose to utilise the architect for RIBA Stages 5 onwards for a full service, we would act as contract administrator on the project (CA). Under this role, we would carry out the following services:

✓ Prepare the tender documentation and form of tender and send out tenders

✓ Receive and advise clients on tenders

✓ Draw up contract documents between the client and chosen builder

 ✓Provide the contractor with information required for construction

✓ Chair pre contract meeting and attend site intermittently as required to see that the work is proceeding in accordance with the contract

✓ Check and issue monthly contractors valuations

✓ Chair/attend monthly design team meetings and log / report them accordingly.

✓ Issue any architects instructions as required for any variations

✓Provide or obtain drawings showing the building and its services

✓ Compilation of the O &M manuals as required under Health & Safety requirements.

✓ Make final inspections and advise on the resolution of any defects at the end of the rectification period

✓Agree the final account and issue a final certificate

✓ Issue final certificate at the end of the defects liability period (after 3,6 or 12 months)

Note, we will not act as Principle Designer (PD) as required under the CDM Regulations however we will monitor the works to generally observe if the contractor is carrying out the main construction phases of the work correctly and in line with our specification and drawings and will assist the contractor with any queries they may have.  Our role will be to monitor the architectural design only and not structural items such as retaining walls or steel structure / beams or temporary works e.g. shoring or propping. The appointed structural engineer who can independently inspect this work if required can carry this out. Please note that whilst we will endeavour to highlight any risky activities occurring on site, we take no responsibility for the design of those activities.  We also accept no responsibility for works carried out between our site visits, which are covered up and unavailable to retrospectively observe.

Personal Service

We offer all aspects of architectural services from feasibility studies and concepts/ideas, through to detail design and contract administration. Furthermore, we can produce visual impressions of our designs to assist our clients in visualising the proposals using a wide range of techniques tailored to the individual project and client’s needs. We utilise CAD technology to assist the design process and communicate schemes to clients and have implemented the latest design technology software known as BIM (Building Information Modelling). These include 3D models produced using BIM 3D software and Revit. Utilising BIM on projects promotes:

✓ improved visualisation for clients e.g. 3-d renders and walkthroughs

✓ speedy design modifications saving time and money

✓ promotes collaboration between the design team

A good relationship between the client and architect is vital to any successful building project. We work collaboratively with our clients and other stakeholders to achieve the desired end result. We encourage regular communication between ourselves and the client throughout the design and build process. This helps develop the proposal in line with the client’s expectations, whilst providing a personal and positive experience. All work is undertaken by or under the direct supervision of an RIBA Chartered Architect. The architect will guide you through a whole process– from the initial design stage to seeing the project through planning and construction, all the way to completion. Architects will add value to your project – whether it comes from maximising the potential for your project budget by creative thinking or opening up ideas and solutions that may not be apparent to the client.  We look for ways to optimise value for money, both in our service, the resulting project and throughout the building’s lifecycle. We adhere to the RIBA Code of Conduct and ARB Code of Conduct, which ensures the highest standard of professional conduct and service.

Sustainable and Eco-Friendly Home Designs: Pioneering a Greener Future in Residential Architecture

In the wake of growing environmental concerns and the urgent call for action on climate change, the realm of residential architecture is undergoing a shift. This evolution sees the integration of green technologies and sustainable materials, not merely as an afterthought but as a foundational principle of design. We’re going to delve into the ways in which modern homes are being crafted to reduce their environmental footprint, offering a beacon of hope for a more sustainable and eco-friendly future.

The Imperative for Sustainable Living

Climate change, precipitated by excessive carbon emissions and resource depletion, presents a stark reality that demands immediate attention. In response, sustainable living has transcended from a niche lifestyle choice to a mainstream endeavour. The construction and housing sectors, historically significant contributors to environmental degradation, are now at the forefront of adopting eco-friendly practices. This paradigm shift is underpinned by a collective aspiration to curtail energy consumption, minimise waste, and promote ecological balance.

Green Technologies: The Heart of Eco-Friendly Homes

At the core of sustainable home design are green technologies, innovations that enable homes to harness energy from renewable sources, reduce energy consumption, and mitigate environmental impact. Solar panels, for instance, have become a common sight, transforming rooftops into power generators that feed clean energy back into the grid. Advances in photovoltaic technology mean that these systems are more efficient and affordable than ever, making solar power accessible to a broader audience.

Another transformative technology is geothermal heating and cooling systems, which leverage the stable temperatures underground to regulate a home's climate without the significant energy expenditure of traditional HVAC systems. These systems epitomise the synergy between modern engineering and natural processes, exemplifying the potential of green technologies to revolutionise residential living.

Sustainable Materials: Building with Nature

The choice of materials plays a pivotal role in the environmental impact of a home. Sustainable architecture prioritises materials that are renewable, recyclable, and have a low carbon footprint. Timber from certified sustainable forests is a popular choice, offering not only carbon sequestration benefits but also warmth and natural beauty. Bamboo, with its rapid growth rate and versatility, has emerged as another favoured material, applicable in everything from flooring to structural elements.

Recycled materials are also gaining traction, with innovations such as recycled steel and glass providing robust, eco-friendly alternatives to their virgin counterparts. These materials not only reduce the demand on natural resources but also divert waste from landfills, contributing to a circular economy.

Design Principles: Harmony with the Environment

Sustainable home design goes beyond the mere selection of green technologies and materials; it embodies a holistic approach that considers the home in harmony with its environment. Passive solar design is a prime example, where homes are oriented and structured to maximise natural light and heat, reducing the need for artificial lighting and heating. Green roofs and living walls are not only visually striking but also improve insulation, reduce runoff, and support biodiversity.

Water conservation is another critical aspect, with rainwater harvesting systems and water-efficient fixtures becoming standard features in eco-friendly homes. These systems underscore the importance of every drop, ensuring that water is used judiciously and sustainably.

Case Studies: Pioneering Projects in Sustainable Residential Architecture

Across the globe, innovative projects are setting the benchmark for sustainable residential architecture. The BedZED development in London is a pioneering example, showcasing a zero-carbon approach with its passive design, communal heating system, and extensive use of green roofs. Another notable project is the Slip House in Brixton, which employs a range of sustainable technologies and materials, from ground source heat pumps to translucent insulation, embodying the principles of energy efficiency and minimal environmental impact.

In Scandinavia, a region renowned for its commitment to sustainability, projects like the Växjö Eco-Village in Sweden demonstrate the feasibility of living in harmony with nature without compromising on modern comforts. These homes are constructed using locally sourced timber, powered by renewable energy, and designed to foster a close-knit community ethos, providing a blueprint for sustainable living.

We use sustainable practice as standard in all of our projects as well as working on multiple dedicated residential eco-friendly home projects at Matthew Jones Architecture.

One of our eco-home projects completed in Denbigh, North Wales

Challenges and Future Directions

While the strides made in sustainable residential architecture are commendable, challenges remain. The upfront costs of green technologies and sustainable materials can be prohibitive, though long-term savings and increasing affordability are mitigating these concerns. Additionally, regulatory hurdles and the inertia of traditional construction practices can impede progress. However, the tide is turning, with governments, architects, and homeowners increasingly recognising the imperative for sustainable living.

The future of residential architecture is undeniably green, with ongoing innovations in materials science, renewable energy, and design methodologies paving the way for even more sustainable homes. The integration of smart technologies, offering unprecedented control over energy consumption, promises to further enhance the sustainability of residential living.

Conclusion

The evolution of residential architecture towards sustainability and eco-friendliness is a testament to human ingenuity and our collective commitment to preserving the planet for future generations. By embracing green technologies, sustainable materials, and holistic design principles, we can forge homes that not only provide shelter

but also contribute to the health of our environment. The pioneering projects and innovative approaches discussed herein offer a glimpse into a future where sustainable living is not just a possibility but a reality. In this endeavour, every step towards sustainability is a step towards a brighter, greener future.

Do you have an eco-home project you’d like to talk to us about?

Agricultural Building Planning in the UK

Navigating the labyrinth of planning regulations for agricultural buildings in the UK can be a complex and daunting process for many. The intricacies involved in obtaining planning approval are vast, but understanding the nuances can greatly enhance the likelihood of success. This comprehensive exploration will delve into the essential aspects of acquiring planning permission for agricultural buildings, illuminated by a compelling case study from Matthew Jones Architecture (MJA), which underscores the practical application of these principles.

Introduction to Agricultural Building Planning

In the UK, agricultural buildings are subject to specific planning regulations that reflect their unique nature and the critical role they play in the rural economy. These regulations are designed to balance the needs of agricultural businesses with environmental considerations and the preservation of the countryside's character. As agricultural enterprises continue to evolve, so too do the challenges and opportunities in developing infrastructure that supports modern farming and rural business activities.

Understanding the Policy Framework

The planning policy framework governing agricultural buildings in the UK is multifaceted, aiming to support rural development while safeguarding the environment and local communities. Key documents such as the National Planning Policy Framework (NPPF) and guidance like Technical Advice Note 6 (TAN 6) in Wales provide the backbone for these regulations, outlining the circumstances under which development in rural areas may be considered appropriate.

The Case of a Rural Enterprise Dwelling

A notable case that exemplifies the application of these policies involves MJA's assistance in obtaining planning approval for a rural enterprise dwelling in the Conwy area for a local iron worker. The project's success hinged on demonstrating the dwelling's necessity for supporting the rural employment of its inhabitant, who needed to reside near his workplace in the open countryside due to the nature of his work and potential emergencies requiring his immediate attention.

Rural Enterprise Dwellings Explained

Rural enterprise dwellings are essential for supporting various rural employment sectors, including agriculture, forestry, boatyards, and tourism. The fundamental criterion for such developments is the operational necessity for workers to be located near their workplace, a requirement underscored by the stringent planning policies governing new builds in open countryside areas.

Planning Policy and Rural Developments

The planning policy is clear: new development in open countryside is strictly controlled to prevent undue harm to the rural character of an area. However, exceptions are made for essential rural enterprise dwellings, where the presence of a worker is critical to the operation's success. This exception has been broadened to include a wider range of rural workers, beyond the traditional confines of agriculture and forestry, reflecting the evolving nature of rural economies.

Navigating the Approval Process

The approval process for a rural enterprise dwelling, as seen in the MJA case, involves several critical tests. Firstly, the proposal must demonstrate a direct relation to rural land management or a compelling reason for its countryside location. Secondly, the necessity for the worker to live in close proximity to their place of work must be convincingly argued. These requirements underscore the planning authorities' commitment to ensuring that countryside development is justifiable and beneficial to rural enterprises.

The Case Study: Iron Worker in Conwy, North Wales

MJA recently assisted with obtaining planning approval for a rural enterprise dwelling for a local iron worker located in Conwy area who wanted a house built in his field near to his work in the open countryside.

So what is a Rural Enterprise Dwelling? Rural enterprise dwellings are those dwellings needed to support agriculture, forestry, boatyards, tourism and other rural employment. Essentially these operations may need staff to be near to the operation in case of emergencies or because they may effectively be on duty for 24 hours a day.

New house building and other new development in the open countryside, away from established settlements is strictly controlled by planning policy.

Planning policy says that the fact that a single house on a particular site would be unobtrusive is not, by itself, a good argument in favour of permission; such permissions could be granted too often, to the overall detriment of the character of an area. Isolated houses in the open countryside require special justification, for example where they are essential to enable rural enterprise workers to live at or close to their place of work in the absence of nearby accommodation. It has, however, been recognised that, within this policy of general restraint of development, there are particular circumstances of housing need which can only be met through the provision of individual dwellings in the countryside. Those circumstances have primarily related to the operational needs of farming and forestry, where an essential need for workers to live at or close to their place of work has been 4 established. In these circumstances, special justification has been required to demonstrate the need as a basis for an exception to the policy of restraint. As part of this package of measures, the Welsh Government has reviewed the scope of the exception to policy which enables individual dwellings to be located in the countryside where there is an essential need. As a consequence of the review, the exception which has been available to agricultural and forestry workers has been extended to a wider range of workers in rural enterprises. This extension applies primarily to land-related businesses which, directly or indirectly, need to be located in the countryside rather than in existing settlements. The scope of this extension for Rural Enterprise Dwellings, and the provisions associated with it, are set out in TAN 6.

In order to get planning approval for such a development, the applicant will need to go through a number of tests. The first key determinant in deciding if a proposal falls within the scope of the new rural enterprise dwelling policy is whether an enterprise is directly related to the management of rural land-related businesses, or has a character such that it can only be located in the open countryside, or has very particular reasons for a location in the open countryside rather than in an existing settlement. For dwelling proposals associated with new enterprises, proposals will therefore be subject to a test of locational necessity, as part of the functional test, and a requirement to demonstrate that an enterprise cannot be located on a suitable site where residential accommodation is likely to be available. The second determinant is whether it is essential to the proper functioning of an enterprise for a worker to be housed in close association with it. Proposals will, therefore, be subject to a test of functional justification.

Conclusion

Obtaining planning approval for agricultural buildings in the UK, including rural enterprise dwellings, requires a thorough understanding of the policy framework and a compelling demonstration of the proposal's necessity and benefits. The case study from Matthew Jones Architecture highlights the practical application of these principles, showcasing how meticulous planning and a strong justification can lead to successful outcomes.

As the rural economy continues to evolve, so too will the approaches to developing the necessary infrastructure, always balancing the needs of the economy with the preservation of the UK's cherished countryside. For those considering such developments, engaging with the complexities of the planning process is essential, and seeking professional advice can significantly enhance the prospects of success.

If you think you qualify or require further help and advice, please get in touch so we can help move your project forward.

What is a Schedule of Works Checklist in Architecture?

The Schedule of Works is an indispensable contractual document in the field of architecture and construction, crucial for the smooth execution and financial oversight of building projects. This detailed checklist serves not just as a roadmap for construction activities but also as a vital tool for ensuring that all parties involved—be it contractors, architects, or clients—are in agreement with the project's scope, specifications, and expectations.

Understanding the Schedule of Works

At its heart, the Schedule of Works outlines the exhaustive list of tasks and materials required to complete a building project. It closely correlates with the project's drawn information, such as building regulations and working drawings, and supports additional documentation like structural engineers' details. This synergy aids in accurately recording and pricing the building work.

Furthermore, the Schedule of Works plays a crucial role in the tendering process. It ensures that all contractors bidding for the project are pricing based on the same specifications and standards, known as ‘like for like’ pricing. This not only fosters fair competition but also assists in the financial planning and management of the project.

Key Components of a Schedule of Works

General Conditions (Preliminaries Document)

This section addresses the foundational aspects of the project, including:

• Rate of liquidated damages

• Timing of payments and retention policies

• Working hours and coordination of services

• Specific Construction Details

Excavations

• Considerations for on-site disposal of waste spoil

• Retention and reuse of topsoil

Floors

• Choices between solid ground floors or timber joists

• Options for first-floor construction and finishes

• Underfloor heating requirements

Walls

• Preferences for brick colour, texture, and pointing style

• Insulation levels and special brickwork details

• Fireplace specifications

Roofs

• Decisions between trussed rafters or open roofs for pitched roofs

• Material and colour of tiles, insulation levels, and special features for both pitched and flat roofs

Doors and Windows

• Specifications for internal and external doors and windows, including construction material, glazing options, and locks

Joinery

• Details regarding staircase construction, kitchen fittings, and other joinery elements like cupboards and skirtings

Sanitary Goods

• Selections of manufacturers, models, and finishes for taps, WC suites, and vanity units

Heating System

• Existing fuel sources and capacity of the current system to handle additional demands

• Boiler types and heating methods, ensuring compliance with Gas Safe Register standards

Electrical Services

• Detailed plans for sockets, lights, switches, and special circuits, emphasising the need for qualified electricians and test certifications

Surface Finishes

• Choices for wall, ceiling, and floor finishes, including painting, tiling, and carpeting

External Works

• Plans for driveways, walls, gates, and other external features like lighting and water features

Conclusion

The Schedule of Works is more than just a checklist; it's a foundational document that guides the entire building process, ensuring clarity, compliance, and quality control. By detailing every aspect of the project, from general conditions to specific material choices and finishes, it facilitates a clear understanding and agreement among all parties involved. This not only aids in the smooth execution of the project but also helps in maintaining budget control and achieving the desired standards of construction.

Aesthetic and Functional: The Power of Architecture Design Services

Welcome to the world of architecture design services, where aesthetics and functionality blend seamlessly to transform spaces into works of art. With a keen eye for detail and a passion for innovative design, architects create structures that not only captivate the senses but also enhance the daily lives of those who inhabit them.

At Matthew Jones Architects, we understand the power of architecture design services in shaping our environments. Our dedicated team of talented architects combines creativity and technical expertise to deliver outstanding results for every project. From residential homes to commercial buildings, we strive to create spaces that reflect our clients' vision and meet their unique needs.

Whether it's incorporating sustainable materials, utilising space efficiently, or creating a harmonious balance between different elements, our architects have the knowledge and skills to bring your dream space to life. With a focus on timeless designs that stand the test of time, we ensure that every structure we create is not only aesthetically pleasing but also functional and practical.

Experience the transformative power of architecture design services with Matthew Jones Architects, where art and functionality converge to create extraordinary spaces that inspire and delight.

The importance of architecture design services

Architecture design services play a pivotal role in our lives, influencing the way we interact with our surroundings and shaping the world we live in. Architects are responsible for creating spaces that are not only visually appealing but also functional and practical. They consider factors such as the purpose of the building, environmental impact, and the needs of the people who will use the space.

The role of architecture in society

Architecture is more than just designing buildings; it is a reflection of the society we live in. Architects have the power to shape communities and create spaces that evoke emotions and tell stories. From iconic landmarks that symbolise a city's identity to sustainable structures that promote environmental consciousness, architecture has a profound impact on society as a whole.

The principles of aesthetic architecture design

Aesthetic architecture design is all about creating visually captivating spaces that evoke a sense of awe and inspiration. Architects use various design elements such as form, texture, colour, and lighting to create a harmonious balance between different components. By incorporating these principles, architects can transform ordinary spaces into extraordinary works of art.

The impact of functional architecture design

While aesthetics are important, functional architecture design is equally crucial. Architects must ensure that their designs not only look good but also serve their intended purpose effectively. This involves considering factors such as spatial planning, accessibility, and efficiency. Functional architecture design takes into account the needs and requirements of the people who will use the space, creating structures that are both practical and user-friendly.

The process of architecture design services

Architecture design services involve a systematic process that begins with understanding the client's requirements and vision. Architects conduct thorough research and analysis to gather information about the site, environmental factors, and legal regulations. They then proceed to create initial design concepts, which are refined through feedback and collaboration with the client. The final design is developed, incorporating technical details and specifications before construction begins.

The benefits of hiring architecture design services

Hiring architecture design services offers numerous benefits for individuals and businesses alike. Architects bring a unique blend of creativity and technical expertise to the table, ensuring that every project is executed to the highest standards. They have a deep understanding of building codes and regulations, ensuring compliance and minimising potential issues. Furthermore, architects can optimise space utilisation, incorporate sustainable design practices, and add value to the property.

Case studies of successful architecture design projects

Let's take a look at some real-world examples of successful architecture design projects that showcase the power of design services. One such project is the Sydney Opera House in Australia, an architectural marvel that has become an iconic symbol of the city. Its unique sail-shaped roof and stunning waterfront location make it a true masterpiece of design.

Another notable example is the Burj Khalifa in Dubai, the tallest building in the world. This architectural wonder combines sleek design with state-of-the-art engineering to create a breathtaking structure that dominates the city skyline. These case studies demonstrate the transformative impact that architecture design services can have on the built environment.

Choosing the right architecture design firm

When selecting an architecture design firm, several factors should be considered. Look for firms with a strong portfolio of projects that align with your vision. Consider their expertise in specific types of buildings, such as residential or commercial. Additionally, evaluate their reputation, client reviews, and the level of communication and collaboration they offer. Choosing the right architecture design firm is crucial to ensure a successful and satisfying outcome.

Trends in architecture design services

The field of architecture is constantly evolving, with new trends and technologies shaping the industry. One notable trend is the emphasis on sustainable design practices, as architects strive to create environmentally friendly buildings that minimise their carbon footprint. Another trend is the integration of smart technologies, such as energy-efficient systems and automation, to enhance the functionality and efficiency of buildings. As technology advances, architects are also exploring innovative materials and construction techniques to push the boundaries of design.

Conclusion: The future of architecture design services

As we look to the future, the role of architecture design services will continue to be instrumental in shaping our environments. With a growing focus on sustainability, functionality, and innovation, architects will play a vital role in creating spaces that meet the needs of our ever-changing society. By balancing aesthetics with functionality, architecture design services have the power to transform spaces into extraordinary works of art that inspire and enrich our lives.

Experience the transformative power of architecture design services with Matthew Jones Architects, where art and functionality converge to create extraordinary spaces that inspire and delight.

What are building regulations Drawings?

To enhance understanding, it's essential to grasp that Building Regulations drawings encompass a comprehensive collection of detailed schematics and construction specifics, which must be submitted to either the local authority's Building Control department or a certified private entity. These drawings stand out for their intricate detail, surpassing the scope of preliminary planning sketches by incorporating an extensive array of technical and regulatory information.

Unlike the initial planning drawings that primarily outline the architectural vision focusing on aesthetics, materials, and the broad strokes of design, Building Regulations drawings delve deeper. They meticulously detail every aspect of the proposed construction, including structural integrity, thermal insulation, water drainage, and a host of other critical elements. These drawings are pivotal not only for securing approval from regulatory bodies but also for providing contractors with a precise blueprint for both estimating costs and executing the build.

The preparation of architectural drawings, Building Regulations drawings, and structural schematics from a consulting engineer forms the backbone of the application process. Additionally, a SAP (Standard Assessment Procedure) report, especially pertinent in constructions with extensive glazing, is required from a specialised consultant. This report plays a crucial role in demonstrating the energy efficiency of the proposed structure.

Building Regulations drawings serve several key purposes:

Illustration of Proposed Works: They offer a detailed visual representation of the proposed project, ensuring that every aspect of the construction is clearly defined and understood.

Dimensionally Accurate Schematics: These drawings provide precise measurements and dimensions, facilitating accurate construction and adherence to design specifications.

Construction Methodology and Material Specifications: Through comprehensive specification notes, they convey essential information about construction techniques, materials, and the structural assembly of various elements.

Compliance with Building Regulations: They document how the design meets the stringent requirements set forth in the Building Regulations, covering everything from structural integrity to energy efficiency and safety standards.

Integration of Structural Engineering: Structural details, informed by the expertise of structural engineers, are seamlessly incorporated within the drawings, ensuring that the design is both aesthetically pleasing and structurally sound.

Comprehensive Drawing Pack: A more extensive set of drawings is provided, including demolition plans, structural layouts, cross-sections, drainage schemes, and occasionally detailed 1:10 scale drawings where precise control over construction details is necessary.

Thermal and Insulation Compliance: The drawings include specific details on thermal compliance, as certified by a SAP report, and specify insulation thicknesses for roofs, walls, and floors to meet energy efficiency requirements.

Detailed Construction and Product Specifications: By offering exact details and specifications for construction materials and methods, these drawings enable contractors to provide accurate quotes and ensure the build is executed according to the specified standards.

In summary, Building Regulations drawings are an indispensable component of the construction planning and approval process. They provide a detailed blueprint that not only facilitates regulatory compliance but also ensures that contractors have all the necessary information for an accurate and efficient build. These detailed drawings bridge the gap between conceptual design and practical implementation, serving as a critical tool for transforming architectural visions into tangible realities.

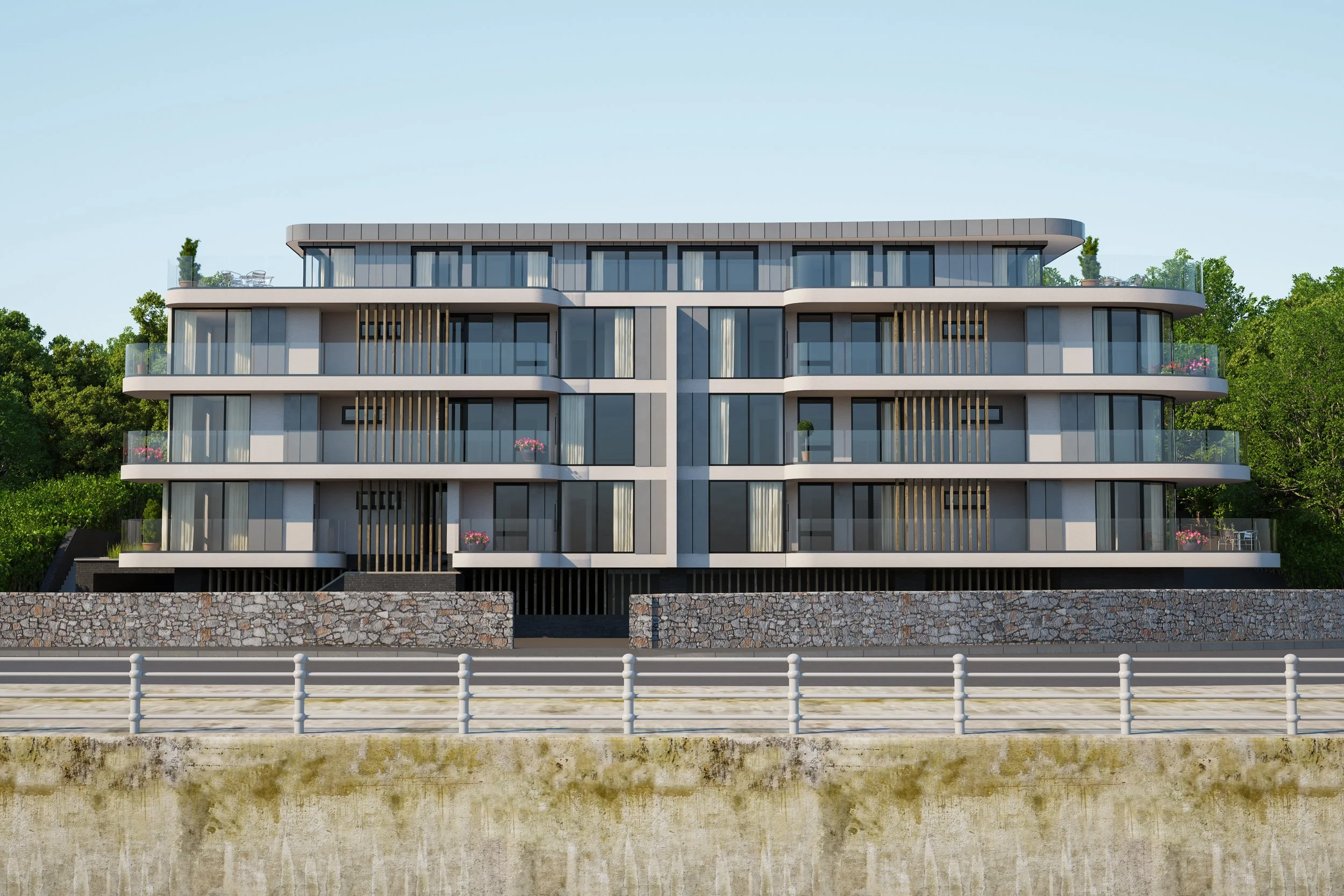

Boat Yard Redevelopment For Rydal Penrhos, Rhos-on-Sea

MJA are pleased to showcase our latest apartment scheme for our clients Rydal Penrhos, for the redevelopment of their boat yard site on the West Promenade in Rhos on sea.

The proposals are for a new build four storey apartment building comprising 18 flats designed in the art deco style reminiscent of a ship liner reflecting is nautical location facing the sea.

The design approach taken here is intentionally modern in order to reflect the modern era with an art deco influence. This is appropriate bearing in mind the mixed vernacular in the locality and the prominent position of the site facing the sea in an area that features a rich mix of modern buildings that contribute successfully to the locality. The building is striking and has lots of glass and will be animated with generous balconies looking out to sea. The design also includes curved elements on the external balconies which would give the building a presence and interest when viewed from the Promenade. The overall result would be an attractive and high quality addition to the Promenade that would have a design quality and style fitting of the stunning location and the 21st century.’

It is a prominent site facing the beach and will no doubt attract a lot of public attention we therefore assume this proposal would be of interest to you.

The proposals are now in the public domain and out to PAC (Pre application Consultation) with planning agents Owen Devenport.

Finding the Perfect Architect: A Comprehensive Guide to Locating the Best Architects Near You

Looking to build your dream home or embark on a new construction project? The right architect can make all the difference. But finding the perfect architect is no easy feat. That's where our comprehensive guide comes in.

In this article, we'll walk you through the process of locating the best architects near you. Whether you're looking for someone to design a modern masterpiece or revamp a historic building, we've got you covered.

Our guide will provide you with valuable insights on how to identify architects with the right expertise, track record, and design style to bring your vision to life. We'll also share tips on evaluating their portfolios, checking references, and conducting interviews to ensure a perfect match.

With an architect by your side, you'll be able to navigate zoning regulations, permit requirements, and construction challenges with ease. So, why settle for anything less than the best? Let our guide help you find the perfect architect who will turn your dreams into reality.

Understanding your architectural needs

Hiring the right architect is crucial when it comes to bringing your vision to life. An architect is not just a designer; they are also a problem solver, a coordinator, and a visionary. They will understand your needs, translate them into a functional and aesthetically pleasing design, and guide you through the complexities of the construction process.

A skilled architect will have the expertise to optimise space, ensure functionality, and create a design that aligns with your style preferences. They will also have a deep understanding of building codes and regulations, ensuring compliance and minimising potential issues down the line.

When you hire the right architect, you gain a partner who will advocate for your vision, collaborate with contractors, and manage the project from start to finish. Their experience and knowledge will save you time, money, and headaches.

Researching local architects

Before you start researching architects, it's important to have a clear understanding of your architectural needs. Take the time to think about your project's scope, your design preferences, and your budget. Consider what elements are essential for you and what aspects you are willing to compromise on.

Are you looking for a residential architect specialising in sustainable design? Or do you need a commercial architect experienced in designing office spaces? Clearly defining your needs will help you narrow down your search and find architects who specialise in the type of project you have in mind.

Additionally, consider the size of your project and the level of involvement you require from an architect. Some projects may only require schematic design services, while others may require full architectural services, including construction administration. Understanding your needs will help you find an architect who can provide the level of service you require.

Evaluating an architect's portfolio

Once you have a clear understanding of your architectural needs, it's time to start researching local architects. Begin by compiling a list of architects in your area. You can use online directories, professional organisations, and local listings to gather names and contact information.

Next, visit the websites of the architects on your list. Take note of their design style, project portfolio, and any additional services they offer. Look for architects who have experience in projects similar to yours and whose design aesthetic aligns with your vision.

Additionally, check if the architects have won any awards or been recognised for their work. This can be a good indicator of their expertise and the quality of their designs. Make sure to read through their project descriptions and view their portfolio to get a sense of their design approach and the variety of projects they have worked on.

Checking for certifications and licences

When evaluating an architect's portfolio, look for projects that are similar in scope, style, and complexity to yours. Pay attention to the level of detail and thoughtfulness in their designs. Look for innovative solutions, creative use of space, and attention to sustainability and functionality.

It's also important to consider the diversity of their portfolio. An architect with a wide range of project types and sizes demonstrates versatility and adaptability. This can be particularly important if you have a unique or complex project that requires out-of-the-box thinking.

In addition to the visual aspects of the portfolio, pay attention to the project descriptions. Do they align with your goals and vision? Are there any specific challenges mentioned that resonate with your project? Understanding the architect's approach and problem-solving abilities will give you a better sense of their suitability for your project.

Reading client reviews and testimonials

Before finalising your decision, it's important to check if the architects on your shortlist have the necessary certifications and licences. Look for architects who are registered with the relevant professional organisations and have the required qualifications to practise in your area.

Certifications such as RIBA chartered or specialised training in certain building types or design methodologies can also be an indication of an architect's expertise and commitment to professional development.

Furthermore, check if the architect carries professional liability insurance. This type of insurance protects you and the architect in case of any errors or omissions during the design and construction process. It's always better to work with an architect who has this coverage in place to ensure peace of mind.

Interviewing potential architects

Client reviews and testimonials provide valuable insights into an architect's reputation, communication skills, and professionalism. Look for architects who have positive reviews and testimonials from past clients. This indicates a high level of client satisfaction and a track record of delivering successful projects.

Reading reviews can also give you an idea of how an architect handles challenges and resolves conflicts. Pay attention to any recurring themes or concerns mentioned by multiple clients. This will help you identify potential red flags or areas to discuss during the interview process.

Additionally, consider reaching out to previous clients directly to ask for their feedback and any additional insights they can provide. This will give you a more comprehensive understanding of the architect's work ethic, responsiveness, and ability to meet deadlines.

Considering the architect's design style and approach

Once you have narrowed down your list of potential architects, it's time to conduct interviews. The interview process allows you to assess an architect's communication skills, personality, and compatibility with your project.

Prepare a list of questions that cover important aspects such as their design process, project management approach, and communication methods. Ask for examples of past projects that are similar to yours and inquire about any challenges they faced and how they overcame them.

During the interview, pay attention to how well the architect listens to your needs and asks clarifying questions. A good architect should be able to understand your vision and translate it into a design that meets your requirements.

Understanding the architect's fee structure

When choosing an architect, it's important to consider their design style and approach. Look for architects whose style aligns with your preferences and who have experience working with the architectural aesthetic you desire.

An architect's design style should be adaptable to your project, whether you're looking for a minimalist, traditional, or contemporary design. Make sure to discuss your design goals and vision with the architect to ensure they understand and can deliver the desired outcome.

It's also important to consider the architect's approach to sustainability, energy efficiency, and the use of sustainable materials. If environmental considerations are important to you, look for architects who have experience in sustainable design practices and can guide you in making environmentally conscious choices.

Making the final decision and hiring the architect

Before hiring an architect, it's crucial to understand their fee structure and ensure it aligns with your budget. Architects typically charge in one of three ways: a percentage of the construction cost, a fixed fee, or an hourly rate.

Each fee structure has its advantages and disadvantages, so it's important to discuss and negotiate the terms with your potential architect. Make sure to clarify what services are included in the fee and what additional costs you may incur throughout the project.

Remember, hiring the right architect is an investment in your project's success. While it's important to consider the cost, prioritise finding an architect with the right expertise and track record, rather than solely focusing on the lowest price.

Matthew Jones Architects - Our New Mold Office

Matthew Jones Architecture, an esteemed RIBA Chartered Practice, has recently announced the opening of its satellite office in Mold, further cementing its presence in the architectural landscape of North Wales and Cheshire. Originating from its primary base in Deganwy, this expansion into Mold signifies the firm's commitment to its growing clientele in Chester, Cheshire, and the surrounding areas.

Renowned for its innovative and award-winning approach to design, Matthew Jones Architecture has long been celebrated for its ability to bring fresh thinking to a wide array of projects. Whether it's a modest domestic refurbishment or an ambitious new-build residential project, the practice approaches each with the same level of dedication and meticulous attention to detail.

The decision to establish a presence in Mold is a strategic one, reflecting the practice's ethos of maintaining close, collaborative relationships with its clients. This new office brings them closer to their clients in Cheshire and North Wales, facilitating more direct and personalised interactions. It's an approach that's not just about convenience but about deepening the understanding and connection with the communities and individuals they serve.

At the core of Matthew Jones Architecture's philosophy is a commitment to creating sustainable, responsive, and visually captivating buildings. Their work is characterised by a balance of innovative design and practicality, ensuring that the final structures are not only aesthetically pleasing but also functional and sustainable. The team, comprising skilled professionals, engages closely with clients, translating their visions and aspirations into tangible realities.

The Mold office, equipped with cutting-edge technology and resources, enables the firm to offer comprehensive services across North Wales, Chester, and Cheshire. This geographical expansion ensures that the team can be more involved in projects, overseeing every aspect with meticulous care. This proximity also aids in better coordination with local contractors and suppliers, streamlining the process and ensuring efficiency from inception to completion.

A hallmark of Matthew Jones Architecture is its personalised approach to design. Every project is a unique reflection of the client's vision, and the firm excels at creating spaces that not only meet functional requirements but also enhance the quality of life for their occupants. The practice's portfolio is a testament to their ability to craft environments that are both inspiring and enriching.

The numerous accolades and awards received by the firm are indicative of their excellence in architecture. However, it's their unwavering dedication to their clients that truly sets them apart. For them, architecture is not just about constructing buildings; it's about shaping environments that have a lasting, positive impact.

With the establishment of the Mold office, Matthew Jones Architecture is poised to become a leading architectural force in the region. The team is enthusiastic about the prospects this new venture presents and remains dedicated to delivering architecturally sound, community-enhancing projects.

In summary, the expansion of Matthew Jones Architecture into Mold is a significant development for the firm and its clients in Cheshire and North Wales. With a focus on collaboration, innovation, and sustainability, the practice is well-positioned to continue crafting exceptional architectural solutions that resonate with both their clients and the broader community.
